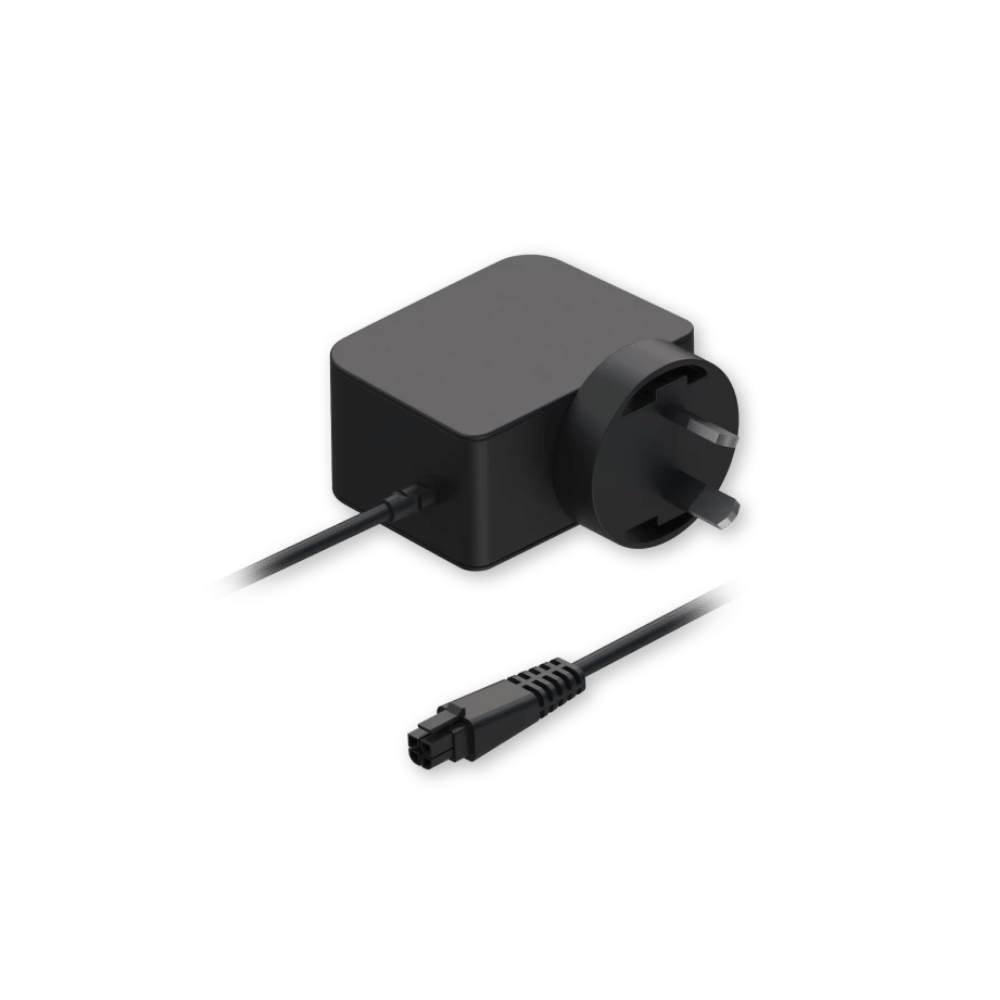

Teltonika PR3PXAU3 18W AU Power Supply – 12VDC, 1.5A, 4-Pin Connector, 2m Cable

Key Features:

• Wide Input Voltage Range: Supports 100–240 VAC input, accommodating global power standards.

• Stable Output: Delivers 12 VDC at 1.5 A, suitable for a range of Teltonika devices.

• Secure Connection: Equipped with a 4-pin, 3 mm pitch output connector for reliable connectivity.

• Long Cable Length: 2-meter cable allows flexible installation options.

• Safety Features: Includes short circuit protection and HIPOT (dielectric withstand test) of 4000 VDC.

• High Efficiency: Meets DoE Level VI efficiency standards.

• Certified Compliance: Adheres to AS/NZS 62368.1:2018, AS/NZS 3112:2017, and EMC standards.

Technical Specifications:

• Input Voltage: 100–240 VAC

• Input Frequency: 50/60 Hz

• Input Current: 0.6 A

• Output Voltage: 12 VDC

• Output Current: 1.5 A

• Output Connector: 4-pin, 3 mm pitch

• Cable Length: 2 meters

• Weight: 89 g

• Short Circuit Protection: Yes

• HIPOT Test: Primary to Secondary: 4000 VDC

• MTBF: 30,000 hours

• Efficiency Standard: DoE Level VI

• Certifications: AS/NZS 62368.1:2018, AS/NZS 3112:2017, AS/NZS CISPR 32:2015, EN 55032:2015, EN 55035:2017, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019

Compatibility:

Compatible with a range of Teltonika devices, including:

• RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX50, RUTXR1, TCR100, TRB143

What's Included in the Box:

• Teltonika PR3PXAU3 18W AU Power Supply
