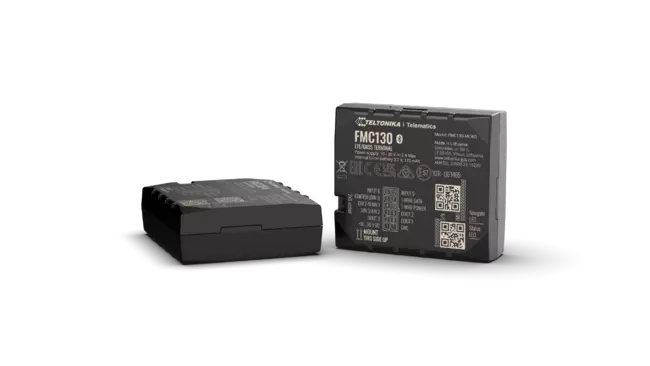

Teltonika FMC130 4G LTE Cat 1

Key Features:

• Global Connectivity: Supports 4G LTE Cat 1 with fallback to 3G (UMTS) and 2G (GSM), ensuring reliable data transmission across regions with varying network infrastructures.

• Multi-GNSS Support: Utilizes GPS, GLONASS, Galileo, Beidou, and QZSS for accurate positioning, with a tracking sensitivity of -165 dBm and position accuracy of < 2.5 m.

• Flexible Inputs and Outputs: Equipped with configurable digital, analog, and impulse inputs, as well as three digital outputs, allowing integration with various sensors and devices.

• Bluetooth® LE Connectivity: Enables wireless connection to external devices such as temperature sensors, humidity sensors, and other Bluetooth Low Energy (BLE) devices.

• Remote Engine Blocking: Provides the capability to remotely immobilize the engine, enhancing vehicle security and theft prevention.

• Internal Backup Battery: Includes a 170 mAh Li-Ion battery, ensuring continued operation during power interruptions.

Technical Specifications:

• Dimensions: 65 x 56.6 x 20.6 mm

• Weight: 61 g

• Operating Temperature (without battery): -20°C to +85°C

• Operating Temperature (with battery): -20°C to +40°C

• Input Voltage Range: 10–30 V DC with overvoltage protection

• Power Consumption at 12V (Nominal with no load): < 33 mA

• Bluetooth Specification: 4.0 + LE

• SIM Card: Micro-SIM or eSIM

• Memory: 128MB internal flash memory

• Ingress Protection Rating: IP41

What's Included in the Box:

• FMC130 Tracker Device

• Mounting Bracket

• 3M Double-Sided Tape

• Quick Start Guide

• USB Cable for Configuration

• GNSS and LTE Antennas

• SIM Card Holder
